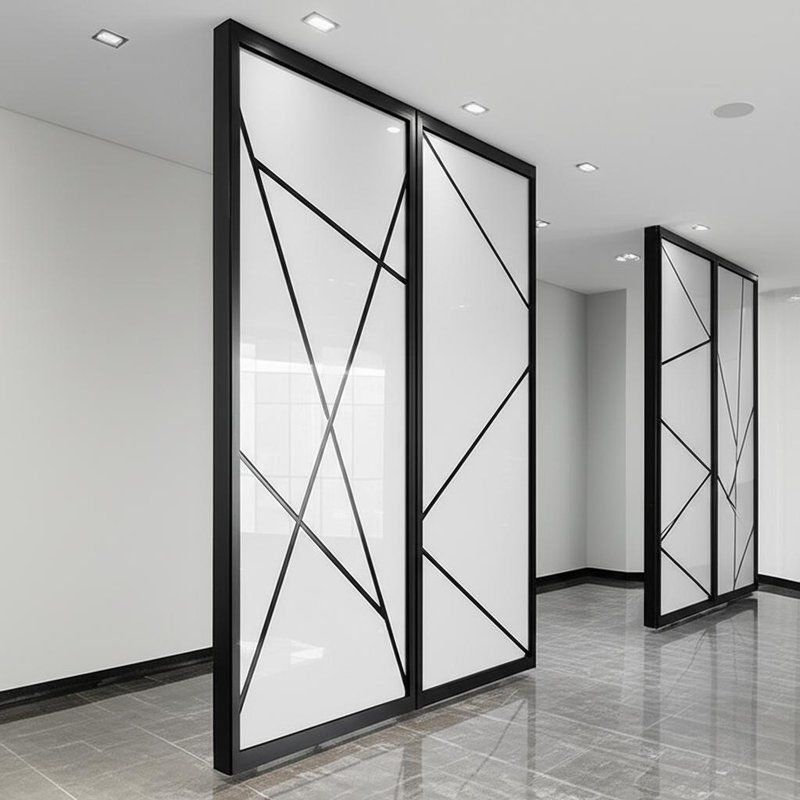

Sliding Acoustic Partition Wall with Glass Finish Customizable Dimensions and OEM & ODM Design

Sliding Acoustic Partition Wall with Glass Finish Customizable Dimensions and OEM & ODM Design

Tên thương hiệu: AE
Số mẫu: AE100
MOQ: 10 mét vuông
giá bán: USD90-135Per Square Meter
Điều khoản thanh toán: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Khả năng cung cấp: 1000 mét vuông mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Quảng Đông, Trung Quốc
Chứng nhận:
ISO9001 SGS
Sản phẩm:
Hệ thống vách ngăn cách âm
Ứng dụng:
Bệnh viện, Tòa nhà văn phòng
Bảng cơ sở:
Vật liệu do khách hàng cung cấp
Kích thước:
Tùy chỉnh (Chiều cao: lên đến 18M, Chiều rộng mỗi tấm: lên đến 1,2M)
Thiết kế:
OEM & ODM
Cách điện âm thanh:
Tối đa 56db
chi tiết đóng gói:
Lớp bọt và bìa cứng cứng với vỏ gỗ dán hoặc pallet thép
Làm nổi bật:

Glass Finish Sliding Acoustic Partition Wall

,

Customizable Dimensions Movable Partition Wall

,

OEM & ODM Design Operable Partition Wall

Mô tả sản phẩm
Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish
Sliding Acoustic Partition Wall Systems with Glass Finish for Global Solutions

Maximize your room's potential with our modular movable partitions. Designed for easy assembly and disassembly, these folding partitions are perfect for temporary or permanent space solutions.

Our manually operated partition system is composed of several panels that are easy to move and position by hand. No special tools are required—simply use the operating handle to lock the panels and activate the mechanical seals for effective acoustic insulation.

Key Features and Services
  • German Partition Technology Global Professional Space Solutions
  • Site inspections and project experience with heavy customers
  • Highly competitive prices with fast response to construction issues
  • Controlled delivery times for decent orders
  • Comprehensive OEM & ODM services tailored to specific needs
  • Product specifications and value-engineered alternatives
  • Submittal drawings provided
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Patented wheel surface and shape for easy operation
Panel Options & Features
  • Available thicknesses: 68mm, 89mm, 105mm
  • Wide variety of acoustical and decorative finishes
  • 6061-T6 profile with Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal with 800N power
  • Magnetic seal in concave & convex profile with 40N/m attraction
Technical Specifications
Series Element thickness (mm) Element width* (min/max) Clear height* (min/max) Framed construction Panel fixing Element interconnection
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
